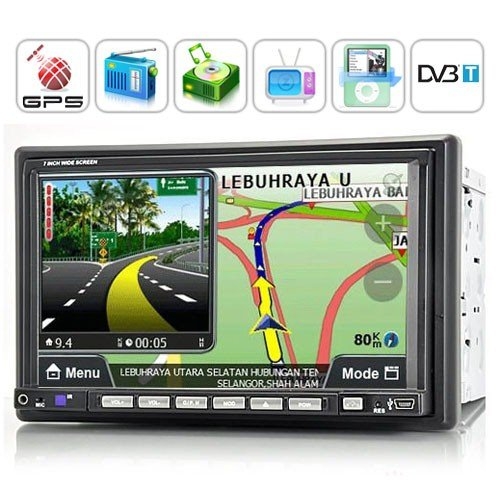

2 DIN LCD Screen Car DVD Player Support GPS Navigation and DVB-T

The Car DVD Players equipped with GPS from EstoresChina are compatible with most brands of GPS software such as Route 66... However, as a wholesaler, EstoresChina provides the GPS-enabled hardware only, not the software. The GPS Map EstoresChina provided is merely the test version. We can't guarantee it is a latest version to you. If you want to upgrade, you would better buy a latest local model and perform under the professional guidance. EstoresChina can't provide downloads / links / suggestions regarding GPS software.

• DVB-T is universally used in Europe while it can not be used in the United States, Canada and Mexico.
• DVB is a series of open standard of digital television recognized internationally. It is started by Joint Technical Committee in Europe. And DVB-T is one transmission mode of DVB system.

Specifications:

• Function: 7.0 inch LCD true touchscreen car DVD player
• Main Feature:
  - Detachable panel for security
  - High definition 7.0 Inch LCD true touchscreen
  - Astounding 800 x 480 screen resolution
  - 3D flash user interface
  - GPS receiver and free magnet antenna
  - DVB-T receiver and free magnet antenna
  - Free 2GB SD card with evaluation GPS software
  - Dual zone functionality
  - Multiple OSD languages!
• Primary function: 2-din high definition 7 inch true touchscreen car DVD player system with DVB-T and GPS navigator and detachable security panel
• Car navigation on-board processor: Samsung industrial grade S3C2440A CPU - Processor speed: 400MHz
  - DDR SDRAM: 64 MB
  - Internal flash memory: 128 MB
  - External memory(SD card support): up to 8GB(free 2GB SD card included)
  - Operating system: Microsoft Windows CE 5.0(compatible with all major GPS software packages)
• GPS specifications:
  - GPS receiving chip: Atheros AR1511
  - Advanced tracking: yes( 60dBm tracking sensitivity extends positioning coverage into places like urban canyons and dense foliage where the GPS was not possible before)
  - Receiver type: L1 frequency band, C/A code, 20-channels
  - Tracking: - 160dBm
  - Acquisition: - 144dBm
  - Position: 3.0m CEP50 without SA(typical open sky)
  - Velocity: 0.1m/s without SA
  - Timing(PPS): 60ns RMS
  - Cold start: 36s(typical open sky)
  - Warm start: 30s
  - Hot start: 2s
  - Re-acquisition: < 1s
  - Acquisition: 35mA
  - Navigation data update rate: 1Hz
  - Altitude: max 18,000m
  - Velocity: max 515m/s
  - Acceleration: less than 4g
  - GUI interface: yes - 3D type
  - Touchscreen interface: yes
  - Operating environment: WIN CE 5.0
  - PIP (picture in picture) function
  - Dual zone function
  - GPS menu languages: English(United Kingdom), English(United States), Mandarin Putonghua Chinese, Cantonese Chinese, Taiwanese Chinese, German, French, Italian, Dutch, Spanish, Romanian, Portuguese(Portugal), Portuguese(Brazil), Swedish, Danish, Norwegian, Finnish, Czech, Greek(actual voice and display language depends on GPS software package)
• Disc compatibility: DVD, CD, VCD, CD-R/RW, CD+R/RW, DVD-R/RW
• Media Formats Supported:
  - Video: DivX 3 AVI, DivX 5 AVI, DivX 5, MPEG 1/2, VOB, XVID AVI, XVID MP4, DAT
  - Audio: MP3, WMA, AAC, M4A
  - Picture: JPEG
• External Memory:
  - USB drive: yes(max 8 GB)
  - SD card: yes(max 8 GB)
• Operation: touch screen or remote control
• Display Information:
  - Screen: 7 inch TFT LCD
  - Resolution: 800 x 480
  - Angle: 0-90(motorized sliding display panel)
  - Video systems: PAL, NTSC, AUTO
• Audio Information:
  - Max audio output: 60W x 4
  - Signal-to-noise ratio(SNR): > 85dB
  - User adjustable EQ: bass, treble, balance, and fade
• DVD Information:
  - PIP(picture in picture) function
  - Auto play ON / OFF
  - 16:9, 4:3 PS, 4:3 LB
  - DVD menu languages: English, Chinese, German, Spanish, French, Italian, Russian
• DVB-T Information:
  - DVB-T receiving standard: MPEG-2
  - Automatic and manual search
  - Display: 16:9, 4:3
  - PIP(picture in picture) function
• AM/FM Radio Tuner Information:
  - AM frequency range: 522 - 1710KHz(worldwide)
  - FM tuning range: 87.5 - 108.0MHz(worldwide)
  - RDS system: yes
  - PTY(program type), AF(alternative frequencies), TA (traffic announcements), local DX switch
• Wireless Transmission Technology:
  - Pair with mobile phone - then use touchscreen interface
  - Dial, answer, stop call
  - Call history(dialed, received, missed)
  - Volume control
  - Touchscreen keypad
  - Pair with your cellphone and play music from your phone through your car speakers
• Front Panel Controls:
  - Microphone
  - Power button
  - Remote control sensor
  - Mini-USB port
  - Reset button
  - AUX-in
  - Eject button
  - Tuning / select tracks
  - Volume adjust
  - Mute / GPS
  - Band button
  - Mode button
• Primary AV Cables / Wires:
  - 1 x GPS antenna port in
  - 1 x iPod connector
  - 1 x Rearview camera in
  - 1 x Video in
  - 1 x Aux-L in
  - 1 x Aux-R in
  - 1 x Subwoofer
  - 2 x Video out
  - 2 x RCA audio out(front L and R)
  - 2 x RCA audio out(rear L and R)
  - 2 x Left front speaker
  - 2 x Right front speaker
  - 2 x Left rear speaker
  - 2 x Right rear speaker
• Approved: CE / FCC
• After Sales Service: 1 Year Warranty

Accessories:

• Remote Control
• Magnetic GPS Antenna with 300cm Cord
• Magnetic DVB-T Antenna with 300cm Cord
• USB Extension Cable
• iPod Cable
• Pen Stylus
• Users Manual - English
