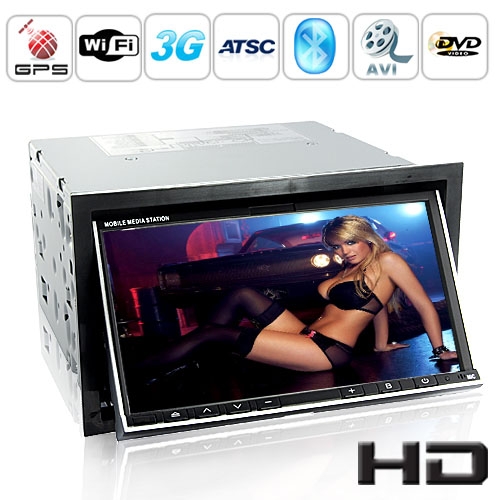

7 Inch 2 DIN WCDMA 3G Car DVD Support WiFi + ATSC + Bluetooth + GPS

The Car DVD Players equipped with GPS from EstoresChina are compatible with most brands of GPS software such as Route 66... However, as a wholesaler, EstoresChina provides the GPS-enabled hardware only, not the software. The GPS Map EstoresChina provided is merely the test version. We can't guarantee it is a latest version to you. If you want to upgrade, you would better buy a latest local model and perform under the professional guidance. EstoresChina can't provide downloads / links / suggestions regarding GPS software.

Specifications:

• Function: Multifunctional 7 inch TFT LCD Screen 2-DIN Car DVD player
• Operation system: Windows CE 6.0
• Motherboard: Telechips TCC8900
• Core CPU: ARM 1176JZF-S (500MHz)
• GPU & internal storage:
  - ARM Mali-200 (200MHz)
  - RAM: 256 MB
  - Nand Flash: 256 MB
• External memory: SDHC card (up to 32GB) and USB drive (up to 32GB)
• Default baud rate: 9600
• COM port: 2
• Main features:
  - Region free 2-DIN Car DVD
  - Support 3G and WiFi network
  - Support advanced GPS navigation and Bluetooth
  - With ATSC digital TV receiver
  - Support music, video playing and customized background picture
  - Support Touch screen
• Display Screen Specification:
  - Screen Size: 7 inch
  - Screen Type: TFT LCD screen
  - Resolution: 800 x 480, RGB
  - Customized background picture
  - Tilt angle: 0-90 degrees(Motorized sliding display panel)
  - Video systems: PAL, NTSC, AUTO
• DVD information:
  - Auto play: ON/OFF
  - 16:9, 4:3 PS, 4:3 LB
  - DVD Menu languages: English, Chinese, German, Spanish, French, Portuguese, Latin, Italian
• Disc information:
  - Region free
  - CD, VCD, SVCD, DVD, MP3, WMA
• Network:
  - 3G: Supports WCDMA 3G dongles and WCDMA 3G SIM cards
  - WIFI: IEEE 802.11 b/g
  - Dual Zone: Yes
• GPS:
  - Receiver module: MediaTek GS-92m-J
  - Frequency: 1.575.42 GHZ
  - C/A Code: 1.023 MHZ
  - Signal channels: 32
  - Tracking sensitivity: -157dBm
  - Position sensitivity: 10m, 2D RMS; 5m, 2D RMS , WAAS enable
  - Speed rate: 0.1m/s
  - Data update rate: 1HZ
  - Recapture time: Average 0.1s
  - Hot startup time: Average 1s
  - Warm startup time: Average 30s
  - Cold startup time: Average 36s
  - Maximum position altitude: 18000M
  - Maximum speed rate: 515m/s
  - Built-in antenna type: External power source porcelain antenna
  - Built-in antenna voltage: 3.3V %
  - Built-in antenna current: 6mA
  - Built-in antenna gain: 27dB
  - Interface: Touch screen
  - GUI interface: YES - 3D type
  - Maps: via SD card
  - Voice: YES
  - GPS menu languages: English (United Kingdom), English (United States), Mandarin Putonghua Chinese, Cantonese Chinese, Taiwanese Chinese, German, Croatian, French, Italian, Dutch, Spanish, Romanian, Portuguese (Portugal), Portuguese (Brazil), Swedish, Slovak, Slovene, Serbian, Flemish, Bulgarian, Ukranian, Polish, Latvian, Lithuanian, Kalba, Hungarian, Dutch, Danish, Norwegian, Finnish, Czech, Greek, Russian, Thai, Malay. (Actual voice and display language depends on the GPS software being used)
• Bluetooth Information:
  - Pair with mobile phone, use with touchscreen interface
  - Dial, Answer, Disconnect
  - Call history , Volume control, Touchscreen keypad
• ATSC information:
  - With ATSC Digital TV receiver
  - Automatic and manual search
  - Display: 16:9, 4:3
  - Languages: English
• Audio information:
  - Max audio output: 45W x 4
  - SNR: >85dB
  - User adjustable EQ: Bass, Treble, Balance, and Fade
• AM/FM Radio:
  - AM frequency range: 522~1710KHz for global
  - FM tuning range: 87.5~108.0MHz for global
  - Support RDS System
• Media player information:
  - Support 1080P resolution Video playing
  - Video formats: H.264, H.263, MPEG 1/2, MPEG 4, VC-1, Real Video 8/9/10
  - Audio formats supported: MP3 / WMA / EAAC+ / AC3
  - Image formats supported: JPG
• I/O Interface:
  - 1 x IPOD Input port
  - 1 x USB Interface
  - 1 x GPS Antenna Input
  - 1 x ATSC Antenna Input
  - 1 x Radio Antenna Input
  - 2 x RCA Audio Out
  - 2 x RCA Audio Out
  - 1 x Aux-L IN
  - 1 x Aux-R IN
  - 1 x Video IN
  - 2 x Video OUT
  - 1 x Camera IN
  - 2 x Left front speaker
  - 2 x Right front speaker
  - 2 x Left rear speaker
  - 2 x Right rear speaker
• Control information :IR window, Eject, Screen angle adjust up, Screen angle adjust down, Volume decrease, increase, GPS toggle, Power ON/OFF, Reset, Microphone
• Steering wheel control information: Power, Return, Band, Mode, Dial, Disconnect, Mute, Previous, Next , Volume increase, Volume decrease, Play
• Main menu languages: English and Chinese
• Color: Black
• Dimensions(L x W x D): 185 x 175 x 100 mm
• Approved: CE / FCC
• After Sales Service: 1 year warranty

Accessories:

• 1 x Remote control
• 1 x Free 2GB SD Card
• 1 x 54 Mbps 802.11b/g WIFI Dongle
• 1 x 3m Magnetic GPS Antenna
• 1 x 3m Magnetic ATSC Antenna
• 1 x Mounting Frame
• 1 x Metal Fasteners and Screws
• 1 x iPod and USB Cable
• 1 x User Manual
