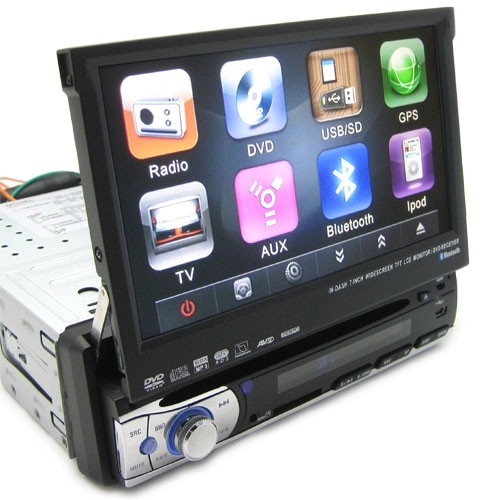

7 Inch TFT-LCD Touchscreen HD Car Multimedia DVD Support GPS and FM Radio

The GPS units EstoresChina provides are compatible with most brands of GPS software such as Route 66... However, EstoresChina only provides a test version GPS Map, We can't guarantee it is a latest version to you. If you want to upgrade, you would better buy a latest local version and perform under the professional guidance. EstoresChina can't provide downloads / links / suggestions regarding GPS software.

Specifications:

• Function: 7 inch touchscreen car DVD receiver
• Auto rear viewing function
• Operation: Touch Screen or Remote Control
• Built-in amplifier & DVD player
• TFT-LCD screen:
  - Size: 7 inch touch screen
  - Ratio: 16:9
  - Spot pitch: 0.107 (h) x 0.372 (V)
  - Resolution: 800 x 3(RGB) x 480
  - Contrast: 150:1
  - Brightness: 300cd per square meters
  - Response speed: R-30 / F-50
  - Viewing angle: U-15, D-35, L/R:55
  - Original luminous lamp: LED
  - Lamp longevity: Over 10 thousand hours
• Laser wave length:
  - DVD: 650nm
  - CD: 780 nm
• Pick up: HITACHI 1200W
• Compatible disc: MPEG-4(DIVX), DVD, DVD+R, DVD-R, VCD, CD, MP3, WMA, JPEG, CD, CD-R, CD-R/W
• Anti-shockproof:
  - DVD: 3 seconds
  - VCD/CD: 10 seconds
  - MP3: 90 seconds
• Audio output level: 1.2V, 0.2A
• Frequency response: 20Hz ~ 20KHz
• Audio signal-noise ratio (S/N): > / = 80dB
• Dynamic scope: > / = 80dB
• Video output level: 1.0 + / - 0.2Vp-p
• Brightness signal-noise ratio (S/N): > / = 56dB
• Color signal-noise ratio (S/N): > / = 60dB
• Display system: AUTO / NTSC
• Menu language: Chinese, English, Spanish, French, GErman, Italian
• TV:
  - Frequency range: 48.25MHz ~ 847.25MHz
  - Display system: PAL / NTSC / SECAM / SECAM_L
  - Audio: DK / I / BG
• Radio:
  - FM frequency range: 87.5MHz ~ 108.0MHz
  - AM frequency range: 522KHz ~ 1620KHz
  - FM sensitivity: < / = 25 dB
  - AM sensitivity: < / = 45 dB
  - Signal-noise ratio (S/N): > / = 50dB
  - Distortion: < / = 0.3%
• GPS:
  - Main frequency: 400MHz
  - Operation system: WINCE5.0 CORE
  - Support audio type: MP3 / PCM / WMA
  - Support video type: ASF / AVI / WMV / DIVX
  - Audio output: Stereo CD quality
  - Chip set: SiRF star III
  - Frequency: 1.575GHz
  - Channel nember: 20 channels
  - Tracking sense degree: -159dBm
  - Position accuracy: 10m, 2D RMS 5m, 2D RMS, WAAS enable
  - Velocity: 0.1 m/s
  - Data renewal rate: 1Hz
  - Re-catching time: Average 0.1s
  - Hot start time: Average 1s
  - Warm start time: Average 38s
  - Cold start time: Average 42s
  - The biggest fixed height: 18,000m
  - The biggest velocity: 515m/s
• Wireless transmission Information:
  - Wireless transmission 2.0
  - Pair with mobile phone - then use touchscreen interface
  - Dial, Answer, Stop Call
  - Secret key to toggle between speakers and headset for private calls
  - Volume Control
• Support SD card reader(SD is for the use of GPS when the unit has the GPS function )
• Front Panel Controls:
  - Microphone
  - Remote Control Sensor
  - Power / Mode Button
  - MUTE / Select Button
  - Volume Adjust
  - Tuning / Select Tracks
  - Navi
  - Eject Button
  - Reset Button
  - Mini-USB Port
• Media Inputs:
  - DVD / CD disc slot
  - GPS card slot
  - Mini USB input
  - SD / MMC card slot
  - GPS Antenna
• Primary AV Cables / Wires:
  - 1 x GPS antenna port IN
  - 1 x IPOD connector
  - 1 x Rearview Camera IN
  - 1 x Video IN
  - 1 x Aux-L IN
  - 1 x Aux-R IN
  - 1 x Subwoofer
  - 2 x Video OUT
  - 2 x RCA Audio OUT (front L and R)
  - 2 x RCA Audio OUT (rear L and R)
  - 2 x Left Front Speaker
  - 2 x Right Front Speaker
  - 2 x Left Rear Speaker
  - 2 x Right Rear Speaker
• Temperature:
  - Work: -20 ~ 70 degrees Celsius
  - Storage: -30 ~ 80 degrees Celsius
• Power supply: DC 13.8V
• Stanby current: < / = 10MA
• Color: Silver
• Dimensions(W x H x D): 178 x 50 x 205 mm
• Approved: CE / FCC
• After Sales Service: 1 Year Warranty

Accessories:

• 1 x Remote Control with battery included
• 1 x Free 2GB SD Card with evaluation GPS software and maps
• 1 x USB Extension Cable
• 1 x iPod Cable
• 1 x ISO Wire
• 1 x RCA Wire
• 1 x DTV Antenna
• 1 x Plastic Frame
• 1 x Metal Shrouder
• 1 x User Manual
• 1 x Touch Pen
